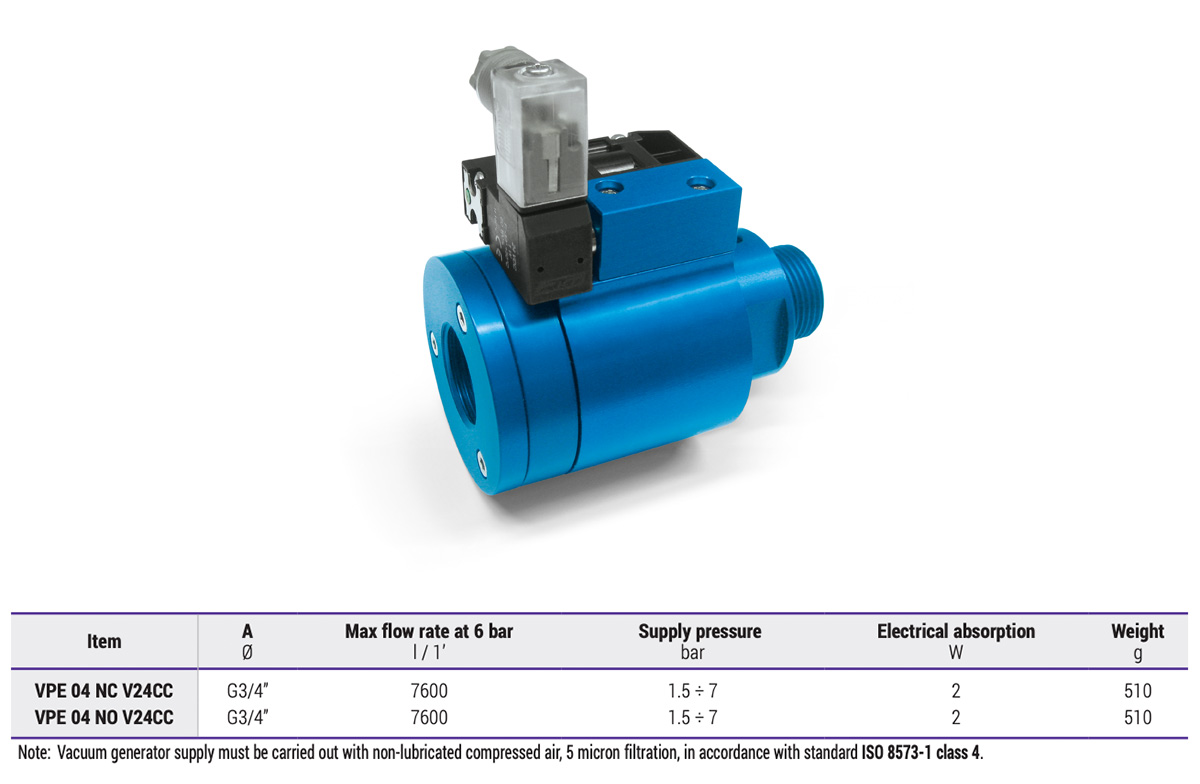

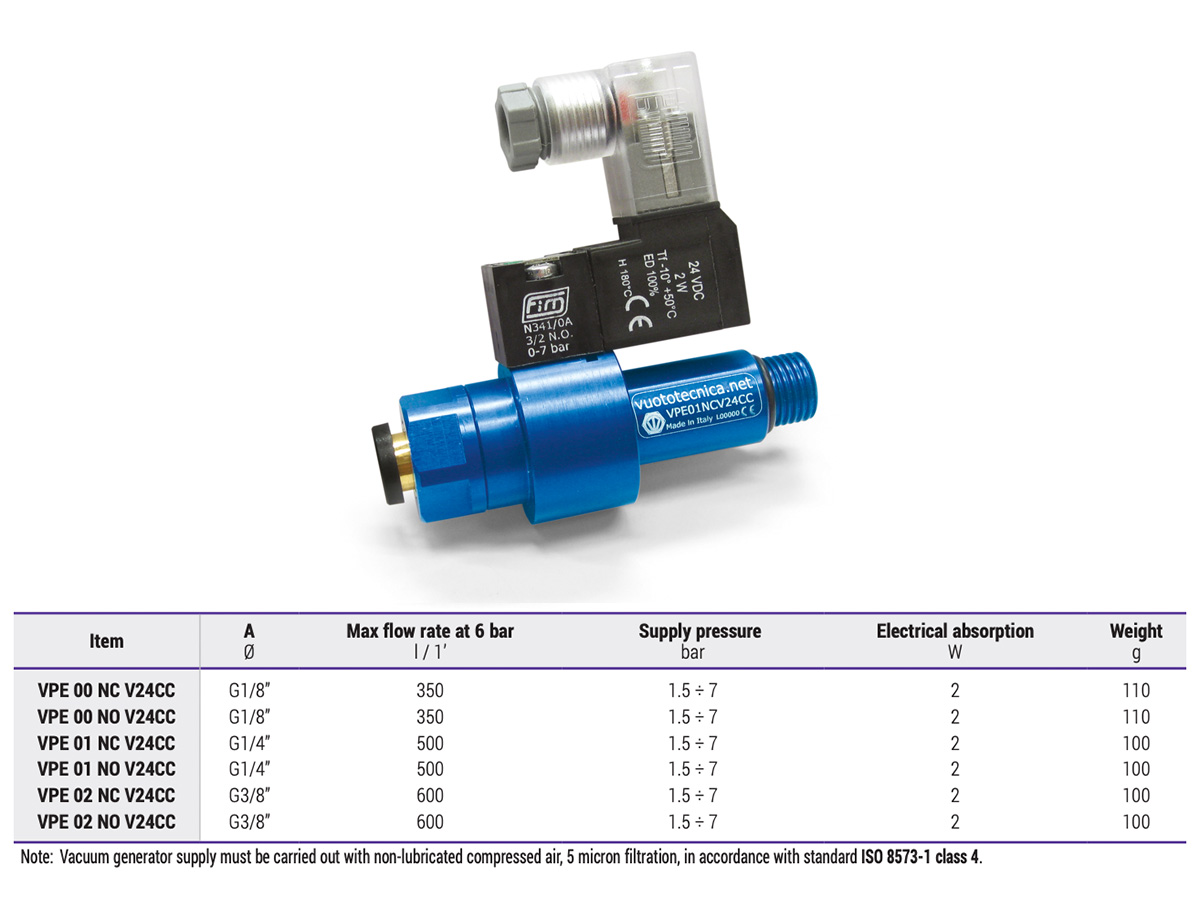

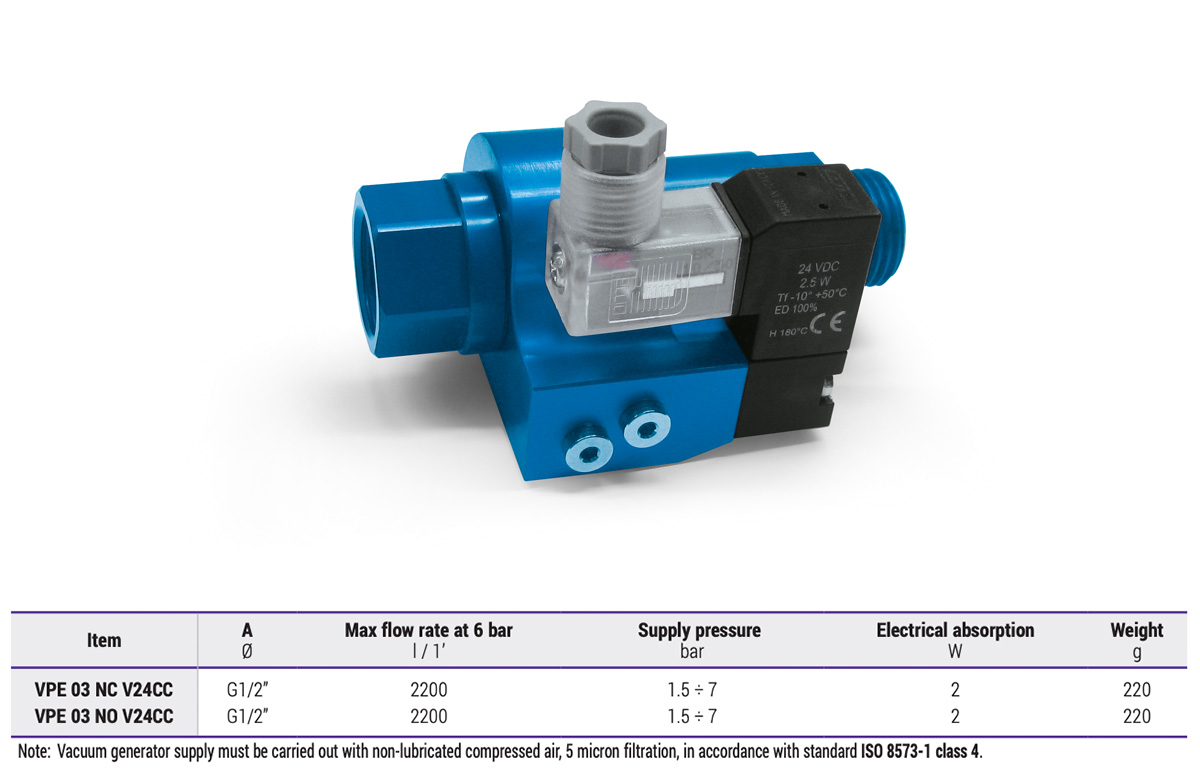

The purpose of the new VPE Vuototecnica coaxial shutter solenoid valves is to intercept the compressed air supply to the vacuum generators, a task they accomplish, precisely, thanks to a special coaxial shutter that allows the supply of large amounts of air.
![](https://www.vacuumdaily.net/wp-content/uploads/2023/08/Accessori-ricambi-per-generatori-di-vuoto_VPE_tabella_01_en.jpg)
![](https://www.vacuumdaily.net/wp-content/uploads/2023/08/Accessori-ricambi-per-generatori-di-vuoto_VPE_tabella_02_en.jpg)
![](https://www.vacuumdaily.net/wp-content/uploads/2023/08/Accessori-per-generatori-di-vuoto_monostradio-VPE_tabella_03_en.jpg)
This shutter is pneumatically operated by means of a micro-solenoid valve with a low-power coil to handle operating pressures between 1.5 and 7 bar.
As a result, a higher suction cup pick-up speed can be expected, a desirable result when dealing with high-frequency robotic pick-and-place systems.

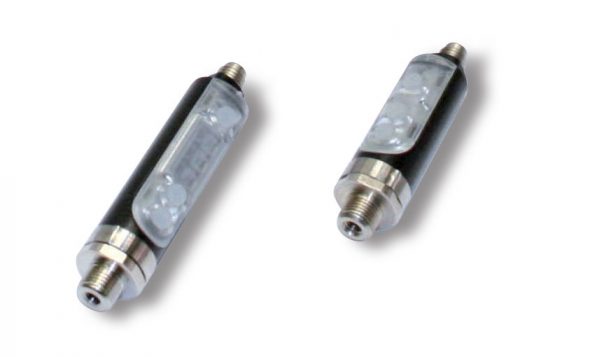

The solenoid valves can be controlled by means of vacuum switches and energy-saving cables so that the consumption of compressed air, which feeds the venturi, can be managed when a predetermined vacuum value is reached.
![](https://www.vacuumdaily.net/wp-content/uploads/2013/07/Vacuostati-590x357.jpg)
![](https://www.vacuumdaily.net/wp-content/uploads/2023/08/Set-di-cavi-con-energy-saving-integrato-0015202-590x393.jpg)

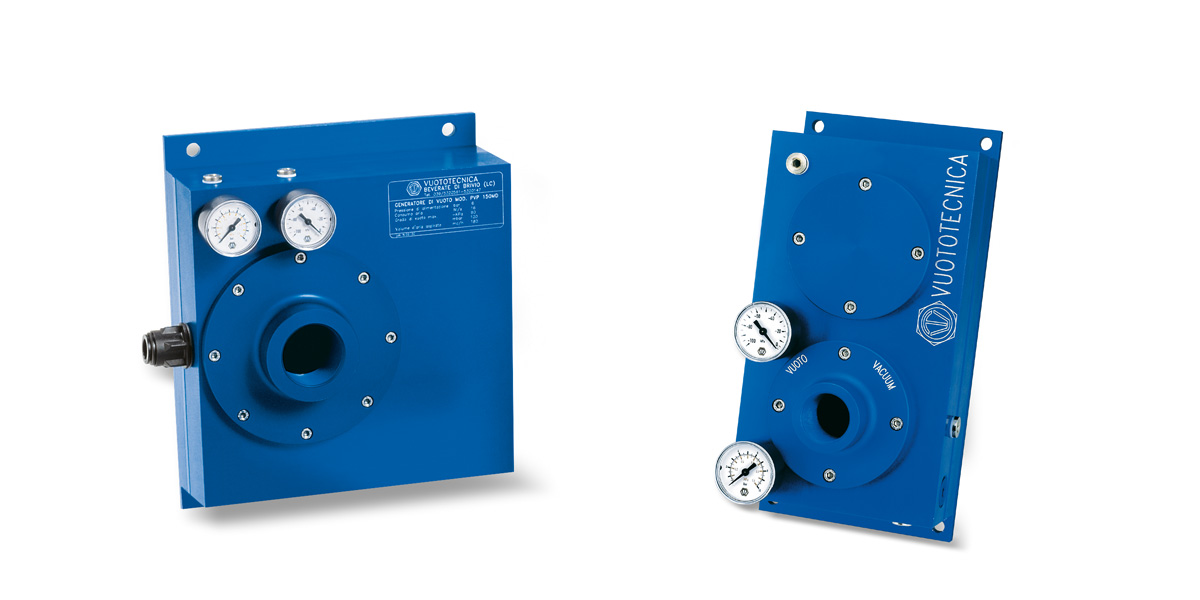

They are also very compact and can therefore be installed directly on board vacuum generators so as to avoid the presence of long pipes and unnecessary footprint.
![](https://www.vacuumdaily.net/wp-content/uploads/2023/08/GENERATORI-DI-VUOTO-MULTISTADIO.jpg)

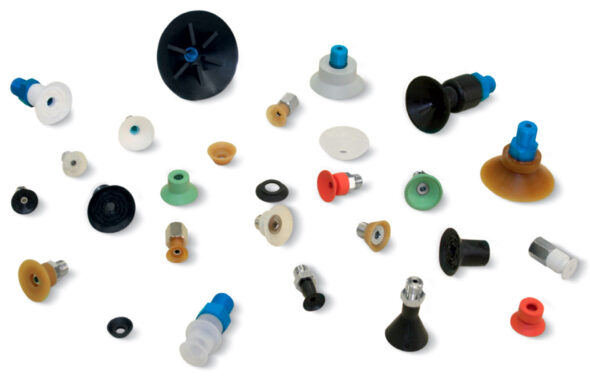

The same valves can also be used in all cases where atmospheric air needs to be quickly restored to a vacuum circuit or a part taken with suction cups needs to be quickly released.
![](https://www.vacuumdaily.net/wp-content/uploads/2022/02/1_67-1_85-VENTOSE-PARTICOLARI-CON-RELATIVI-SUPPORTI-1-590x378.jpg)

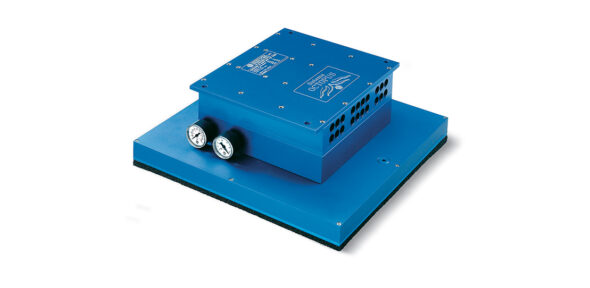

They are therefore installed on board Octopus gripping hands to facilitate the cleaning and release of parts to be handled.
![](https://www.vacuumdaily.net/wp-content/uploads/2022/03/SISTEMA-DI-PRESA-A-DEPRESSIONE-OCTOPUS-SO3030X-590x288.jpg)
To learn about the full range of Vuototecnica solenoid valves, you can download the Vacuum Solutions catalogue at www.vuototecnica.net
